Remote access with Stonel™ Wireless Link app

Easily access hard-to-reach automated valves

Field devices with on/off valves and communication protocols for process automation featuring wireless technology

Discover convenient remote access and advanced diagnostics of your automated on/off valves when you install Stonel™ Axiom™, Eclipse™ and Prism™ valve communication solutions featuring Bluetooth® technology.

Fast, convenient set-up

for valve automation suppliers without special equipment

Remotely access automated valves

from up to 50 meters depending on obstructions

Access from a safe, convenient location

Stroke a valve, read the device tag and diagnostics, and set the valve to open or closed

Interfacing devices

Compatible with Android and iOS devices

With the new patent pending Stonel wireless link app you can remotely:

Monitor and set open and closed switch positions
Monitor and set the network address
Monitor and set the baud rate
Operate solenoid valve(s) (if applicable)
Identify model and serial number (preset from factory)
Identify valve automation components (entered by valve supplier)
Log maintenance information

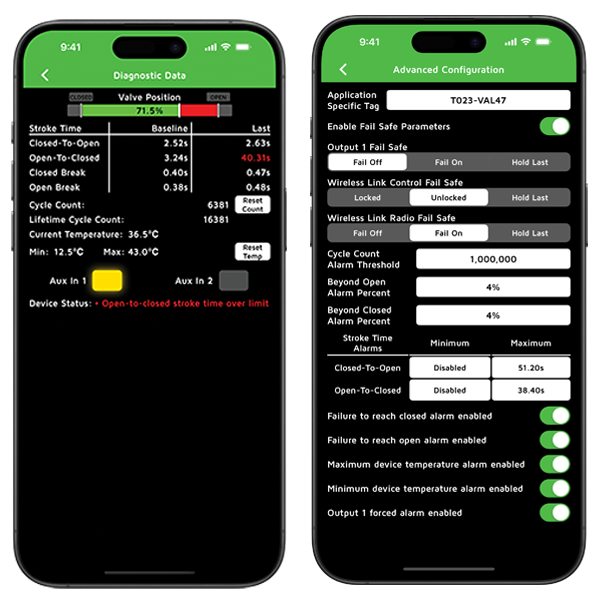

Monitor diagnostics (valve cycle count, electronics temperature, and more).

Wireless link files

Interfacing devices

Compatible with Android and iOS devices.

Benefits of wireless link

Improve safety by easily controlling hard-to-reach automated valves without putting plant personnel at risk.
Look up factory preset module code and serial number remotely.
Electronically enter and store key automated valve system information including user tag and maintenance log.
Reduce network commissioning time by accessing the VCT address to make changes.
Reduce maintenance time by monitoring valve cycle count, cycle times, storing maintenance logs, and accessing multiple valves from one location.
Conveniently retrieve installation manuals for additional technical information when connected to internet.

Features

Ease of assembly and use, lower construction costs, and improve safety
Lower your construction costs and shorten installation time by interconnecting your automated valves using a Stonel platform and a protocol system. And now when you add the Stonel Wireless Link, you don’t have to remove the cover for trouble-shooting or diagnostics. You can stroke your valve, read the device tag and diagnostics, and set the valve to open or closed… ALL from a safe, convenient location.

Compact size
Stonel products are feature-rich and designed to meet the increasing need for smaller, lighter and more durable products to conform to the needs of moveable process skids and flexible manufacturing. The integral solenoid allows for smaller overall envelope size because there is less tubing and cable. And the input/output (I/O) points reside within the valve control terminal (VCT) so minimal I/O racks are utilized.

Precise monitoring
Stonel Axiom and Prism platforms use solid state continuous sensors with increased reliability and precise position measurement, compared to mechanical or proximity-reed technology. These sensors enable more sophisticated valve diagnostics, leading to reduced maintenance costs over the valve’s life cycle.

Predictive maintenance
Avoid downtime or danger due to valve failure by having easy access to information about critical parameters. Using Wireless Link you can remotely monitor valve function, including sensor temperature and cycle counts. With access to cycle count data, you can perform valve maintenance when it is truly needed and replace parts prior to wearing out.

Improved safety with Stonel Wireless Link
Safely, securely and conveniently access difficult to reach communication and control modules. Using standard iPads or iPhones with the Stonel app, further cost savings may be realized. Security is assured with operational/lockout privileges.

Setup and operation

Devices with the wireless function are commissioned and set up identically to a standard unit. In addition, when powered up with a conventional power source or by the network, it may be accessed by standard Android or iOS devices. The device is accessed with the Bluetooth® protocol using the Stonel Wireless Link application.

Sequence of operation is:

Download the Stonel application onto your device (free of charge)
Start the application in your device
All energized wireless modules in range will come up
Push wink to positively confirm the device you have linked (device LEDs will flash)
Touch the specific ID tag to link with your handheld.

You can then monitor all status and diagnostic information and make necessary information changes to the free form fields at any time. Switch settings, address changes, and solenoid operation may be performed only if network - or power supply - enabled. Other information may also be added to the free form fields.

Stonel platforms with wireless link technology

Stonel™ Axiom™ AN / ANX on/off valve controller

The Stonel Axiom AN / ANX offers unmatched reliability using non-contact position sensing with solid state electronics and contaminant-tolerant pneumatic control. Coupled with its space-efficient design, corrosion resistance and optional networking, diagnostics and wireless link capability, it offers unrivaled convenience and cost-saving benefits in hazardous and general purpose process applications.

Stonel™ Prism™ PI limit switch for linear applications

The Stonel Prism PI integrates an advanced position sensing system and integral pneumatic control for sanitary diaphragm and other linear applications. Compact and durable, the PI is suited for corrosive, heavy washdown and hazardous areas.

Stonel™ Eclipse™ compact limit switch

The Stonel Eclipse features dual solid state sensors with optional communications neatly integrated into a sealed module. The Eclipse series is available in (3) form factors to meet your application needs. The NEW ultra compact version for general purpose applications (EC), non-incendive and intrinsically safe versions (EN) for hazardous areas with a removable module and in a general purpose, completely sealed, micro-connector version (EG). For networking/wireless link capability, select EC seri...
