Catalogue of tank car valves

Jamesbury™ tank car ball valve inspection procedure IMO-R26EN

Top valves

Active production products

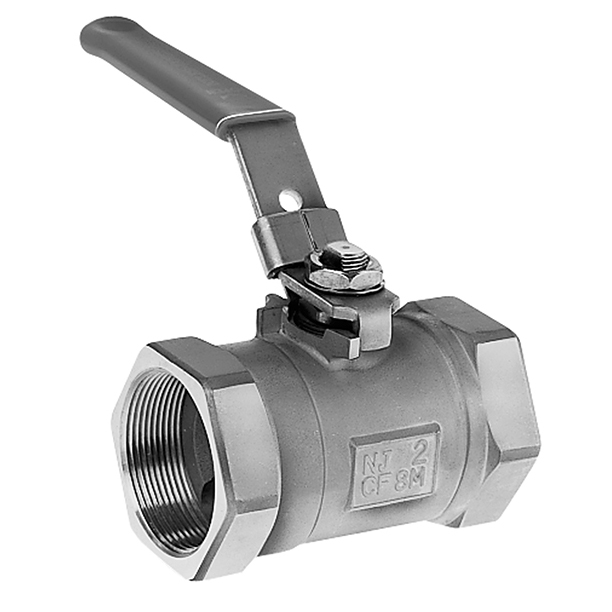

Series 33R

Identification description / Features	Reduced bore tread-end ball valves series 33R model C 1/4" -2" (DN 8-50)
Technical information	Bulletin R109-2
Maintenance instructions	IMO-R25
Repair kits	N.A
AAR certificate	E172111
AAR approval drawing	5380-C

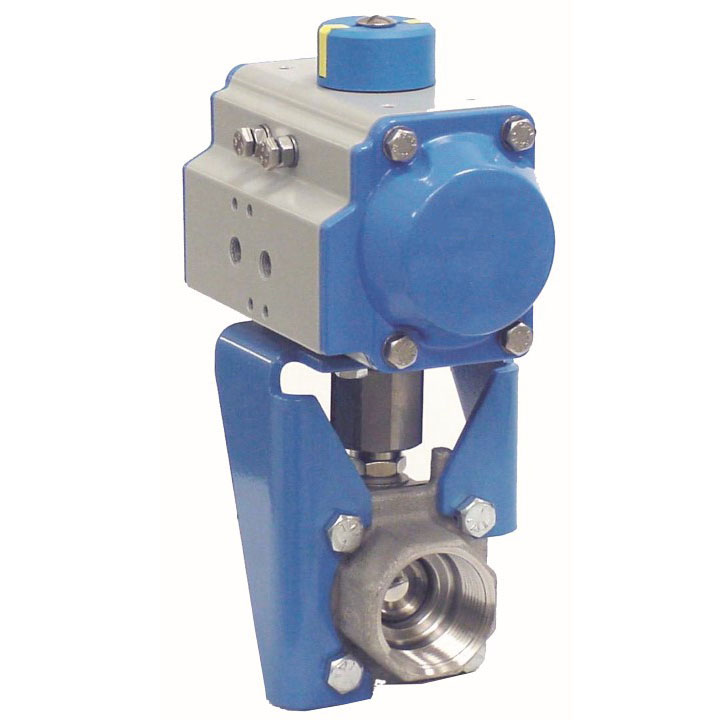

Series 23RR and 9FRR

Identification description / Features	Series 2000
Technical information	Bulletin B102-1, Bulletin 101-2
Maintenance instructions	IMO-011, IMO-213
Repair kits	Standard (1/4" RKC-21, 3/8" RKC-21, 1/2" RKC-21, 3/4" RKC-22, 1" RKC-23, 1-1/4" RKC-24, 1-1/2" RKC-25, 2" RKC-26) Fire-tested (1/4", 3/8", 1/2" RKC-15, 3/4" RKC-16, 1" RKC-17, 1-1/4" RKC-18, 1-1/2" RKC-19, 2" RKC-20)
AAR certificate	E172112, E182106
AAR approval drawing	3772-V, 5443-M

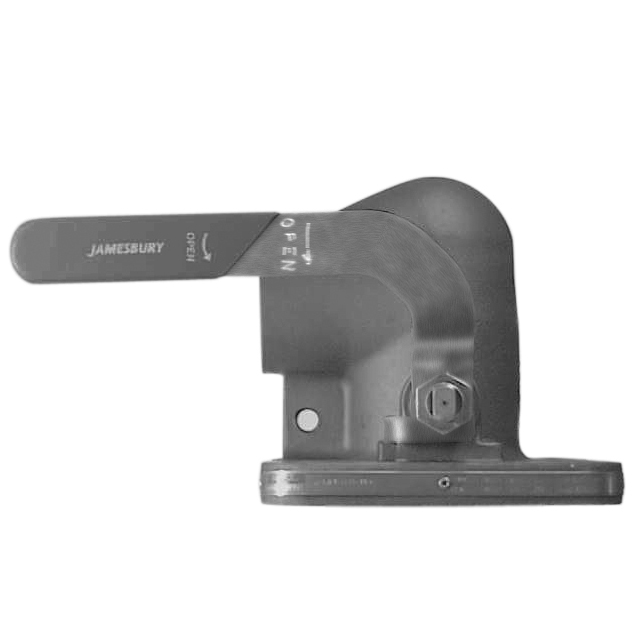

Series 5RNT

Identification description / Features	2” Top-loading and unloading standard-port angle ball valve
Technical information	Bulletin R101-1
Maintenance instructions	IMO-R13
Repair kits	RKR-48
AAR certificate	E172117
AAR approval drawing	5300-C

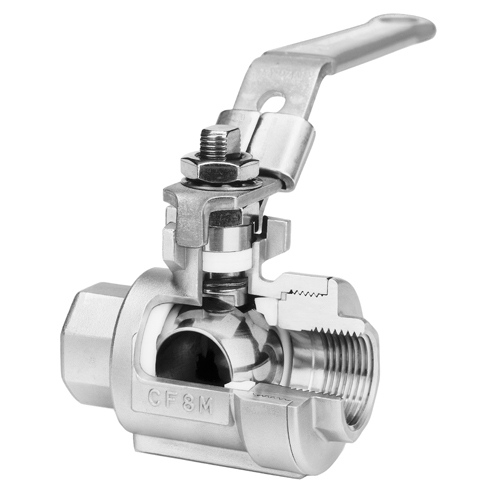

Series 6FR

Identification description / Features	¾", 1", 1-1/2", 2", 3" Full-bore threaded end ball valves
Technical information	Bulletin R109-1
Maintenance instructions	IMO-R15
Repair kits	¾” – RKN-109 1”- RKN-11 1-1/2”- RKN-112, 2”- RKN-198, 3”- RKN-225
AAR certificate	E182105
AAR approval drawing	5541-B, 5542-B, S-5110-D, 5543-A

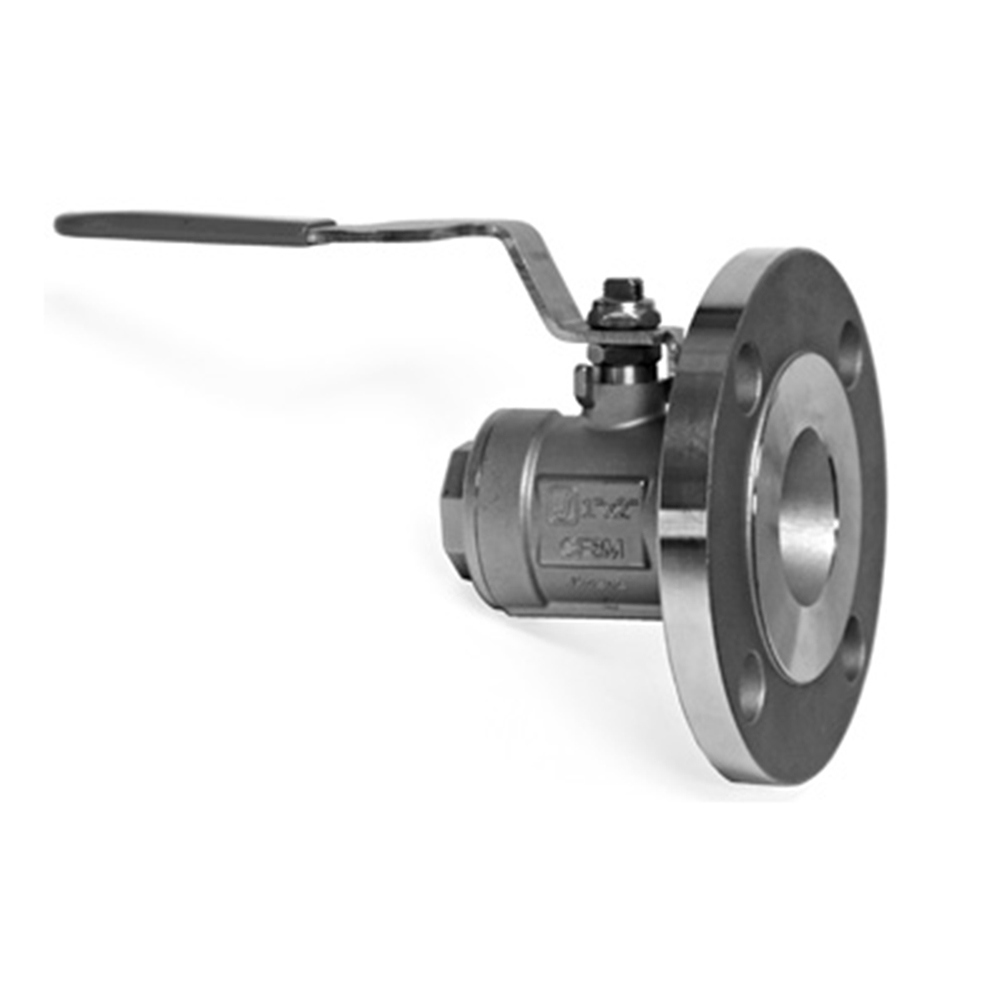

Series 6FRF

Identification description / Features	Value-Line® 1", 2" & 3" (DN 25, 50 & 80) series 6FRF 2-piece ball valves
Technical information	Bulletin R110-1
Maintenance instructions	IMO-R24
Repair kits	N.A
AAR certificate	E182105
AAR approval drawing	5541-B, 5542-B, 5543-A

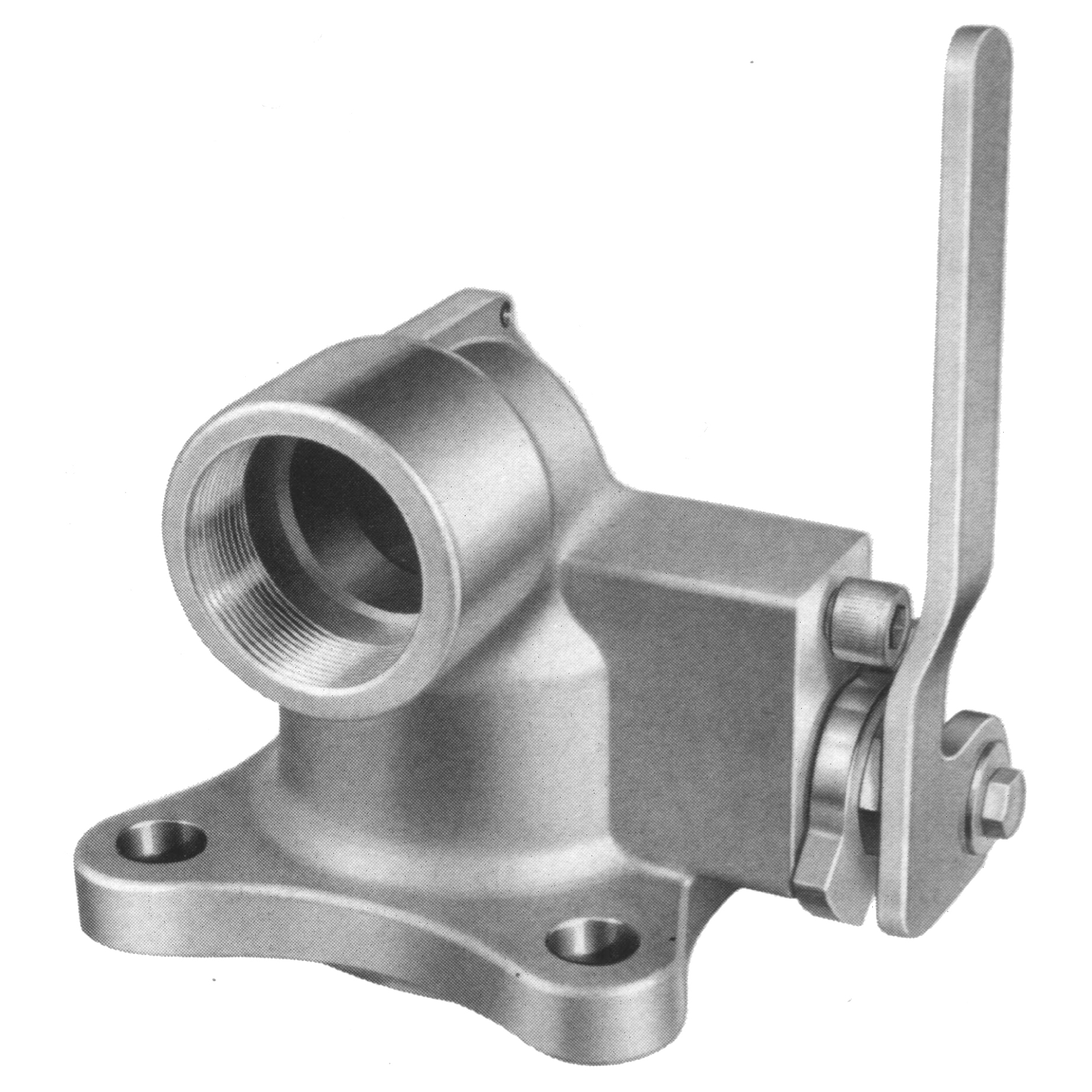

Series 6RA3

Identification description / Features	Series 6RA3 full port angle ball valves 2 inch
Technical information	Bulletin R103-1
Maintenance instructions	IMO-R2
Repair kits	RNK-79
AAR certificate	E172115
AAR approval drawing	4106-K

Series 7RRR, 7RRT, 7RRU

Identification description / Features	1, 2, 3” Flanged ball valve, RRR – 2 ASME raised face flanges, RRT 1 ASME tongue flange, RRU – 1 square AAR flange
Technical information	Bulletin R100-7
Maintenance instructions	1" & 2" IMO-R21, 3" IMO-R22
Repair kits	1”- RKN-356, 2”- RKN-359, 3”- RKN-174
AAR certificate	E212103
AAR approval drawing	5482-C, 5483-A, 5484-A, 5644-0

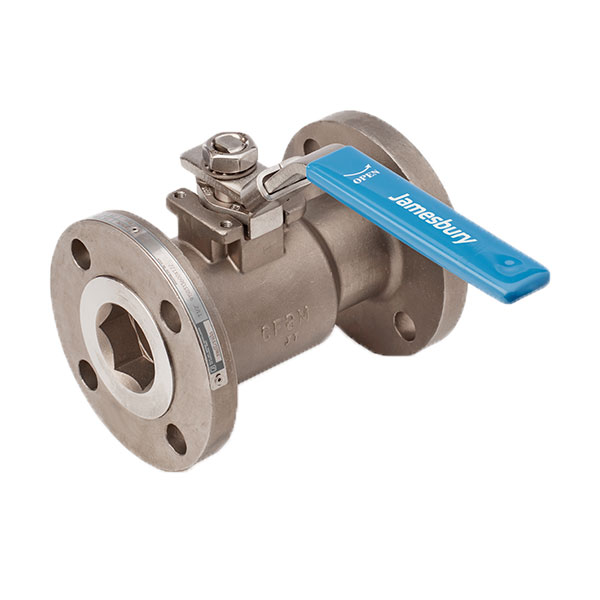

Series 7150RR, 7300RR, 730SRR

Identification description / Features	Series 7000 railroad, standard bore flanged ball valves series 7150RR, 7300RR & 730SRR 1/2" – 6" (DN 15 – 150)
Technical information	Bulletin B107-1
Maintenance instructions	IMO-R27, IMO-214
Repair kits	3" 7150/7300 RKN-174, 4"7150 RKN-175, 6" 7150 RKN-196
AAR certificate	E212103
AAR approval drawing	5482-C, 5483-A, 5484-A, 5644-0, 5152-J, 5445-G, 5442-G

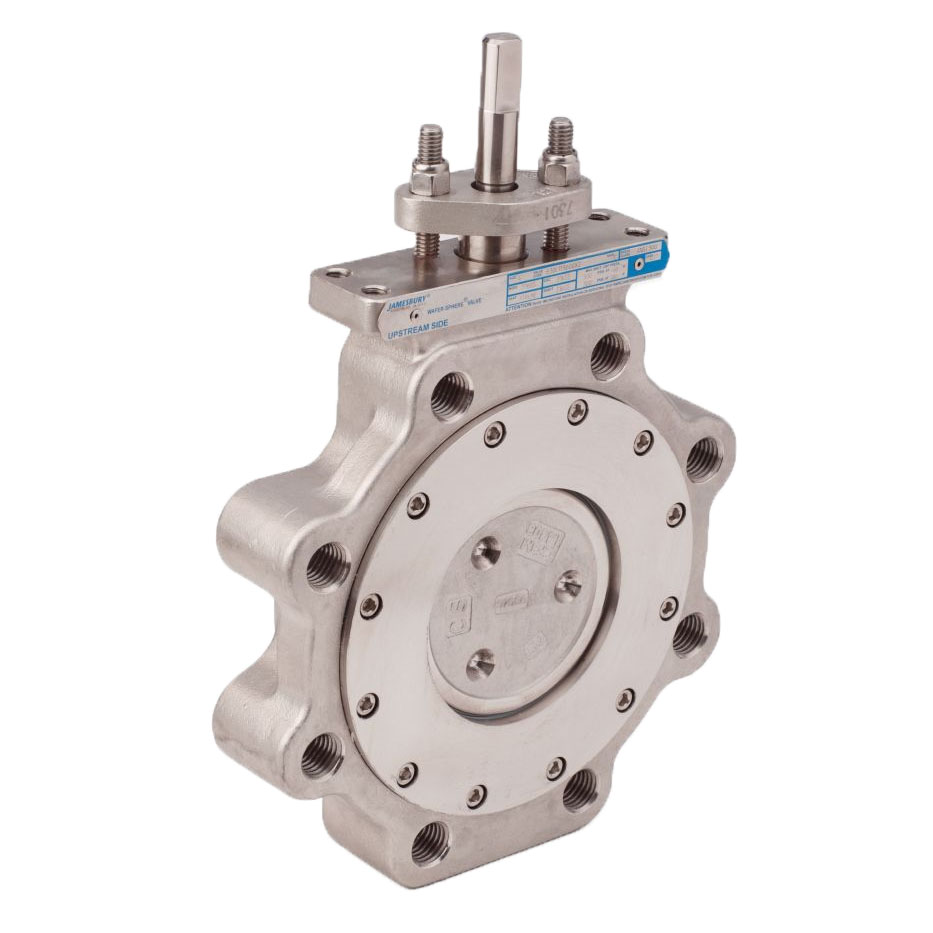

Series 815WRR/815LRR

Identification description / Features	3"-12" 815WRR/815LRR soft seated butterfly valves
Technical information	N.A
Maintenance instructions	IMO-308
Repair kits	3" (DN 80) 815W RKW-352 815L RKW-358, 3" (DN 80) 830W RKW-352 830L RKW-358, 4" (DN 100) 815W RKW-353 815L RKW-359, 4" (DN 100) 830W RKW-353 830L RKW-359, 5" (DN 125) 815W RKW-468 815L RKW-469, 6" (DN 150) 815W RKW-354 815L RKW-360, 6" (DN 150) 830W RKW-405 830L RKW-409, 8" (DN 200) 815W RKW-355 815L RKW-361, 8" (DN 200) 830W RKW-406 RKW-410, 10" (DN 250) 815W RKW-356 815L RKW-362, 10" (DN 250) 830W RKW-407 830L RKW-411, 12" (DN 300) 815W RKW-357 815L RKW-363, 12" (DN 300) 830W RKW-408 830L RKW-412
AAR certificate	E202120
AAR approval drawing

Series 9RFT

Identification description / Features	9RFT full port railroad valves, 2" & 3"
Technical information	N.A
Maintenance instructions	IMO-R17
Repair kits	RKN-183, RKN-168
AAR certificate	E212102
AAR approval drawing	5573-C, 5428-B, 5575-C

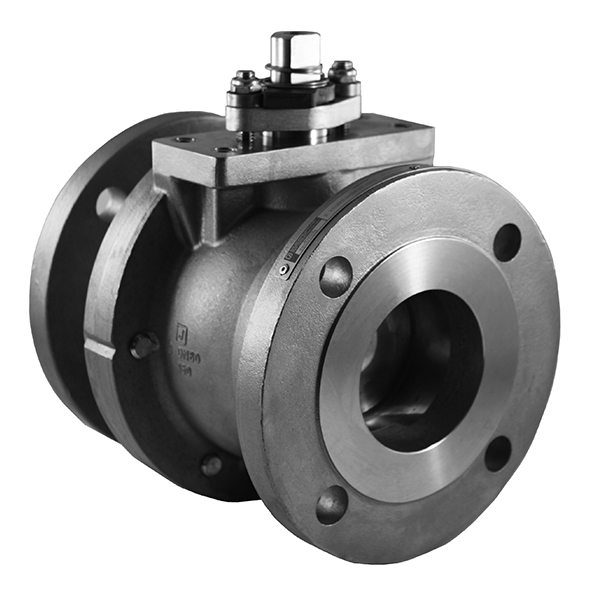

Series 9150RR, 9300RR

Identification description / Features	Series 9000 railroad, split body flanged full bore ball valves series 9150RR, 1/2" - 6" (DN 15 - 150) Class 150
Technical information	Bulletin B107-2
Maintenance instructions	IMO-R28, IMO-214
Repair kits	2”9150/9300 RKN-168, 3" 9150 RKN-183, 3" 9300 RKN-169, 4" 9150 RKN-184, 4" 9300 RKN-170, 6" 9150 RKN-185
AAR certificate	E089013, E212102
AAR approval drawing	5104-L, 5446-D, 5573-C, 5571-C, 5575-C, 5572-A, 5574-A, 5428-B, 5447-G

Top valves

Obsolete and in-active product – spare parts only

5RA3

Product name	5RA3
Product identification description / features	2” Fire-tite top unloading and unloading
Technical information	N.A
Maintenance instructions	IMO-R1
Repair kits	RKC-20
AAR certificate	E879100
AAR approval drawing	4477-B

5RRF, 5RRT, 5RFF, 5RFT

Product name	5RRF, 5RRT, 5RFF, 5RFT
Product identification description / features	Tank-Car Fire-Tite Top-loading and unloading valves
Technical information	N.A
Maintenance instructions	IMO-R7, IMO-R9, IMO-R12
Repair kits	2" 5RRT & 5RRF RKR-48, 3" 5RRF, 5RRT & 5RFF RKR-49, RKR-50
AAR certificate	E172116
AAR approval drawing	5063-E, 5099-D, 5100-B, 5101-A, 5102-B, 5103-C, 5193-A, 5295-B, 5296-B

5RRR, 5RRU

Product name	5RRR, 5RRU
Product identification description / features	5RRU & 5RRR Tank car top loading & un-loading valve,1" & 2"
Technical information	N.A
Maintenance instructions	IMO-R08, IMO-R12
Repair kits	RKR-48, RKR-50
AAR certificate	E172116
AAR approval drawing	5063-E, 5099-D, 5100-B, 5101-A, 5102-B, 5103-C, 5193-A, 5295-B, 5296-B

6FRT

Product name	6RFT
Product identification description / features	6RFT 2"-3" full port railroad valves
Technical information	N.A
Maintenance instructions	IMO-R10
Repair kits	RKN-79, RKN-80
AAR certificate	E989013
AAR approval drawing	5125-A, 5126-A, 9384

6150

Product name	6150
Product identification description / features	Series 6000 model B & C ½” – 1 ½” (DN15-40) Class 150 & 300, 2” – 6” (DN 50 – 150) 6150
Technical information	NA
Maintenance instructions	IMO-50EN 1/2"-11/2", IMO-55EN 2"-6"
Repair kits	6000 series PTFE (½” RKN-41TT, ¾” RKN-43TT, 1” RKN-44TT, 1-1/2” RKN-46TT), Filled PTFE (½” RKN-41MT, ¾” RKN-43MT, 1” RKN-44MT, 1-1/2” RKN-46MT), PFA (½” RKN-41BT, ¾” RKN-43BT, 1” RKN-44BT, 1-1/2” RKN-46BT), PEEK (½” RKN-41LG, ¾” RKN-43LG, 1” RKN-44LG, 1-1/2” RKN-46LG), PFA Seat & Seals (½” RKN-41BP, ¾” RKN-43BP, 1” RKN-44BP, 1-1/2” RKN-46BP), Xtreme® (½” RKN-41XT, ¾” RKN-43XT, 1” RKN-44XT, 1-1/2” RKN-46XT) 2” 6150 & 2” 6300 (PTFE Seats RKN-79TT, Filled PTFE Seats RKN-79MT, PFA Seats RKN-79BT, UHMW Seats RKN-79UU, PFA Seats Seals RKN-79BP) 3” 6150 (PTFE Seats RKN-80TT, Filled PTFE Seats RKN-80MT, PFA Seats RKN-80BT, UHMW Seats RKN-80UU, PFA Seats Seals RKN-80BP) 4” 6150 (PTFE Seats RKN-81TT, Filled PTFE Seats RKN-81MT, PFA Seats RKN-81BT, UHMW Seats RKN-81UU, PFA Seats Seals RKN-81BP) 6” 6150 (PTFE Seats RKN-10TT, Filled PTFE Seats RKN-10MT, PFA Seats RKN-10BT, UHMW Seats RKN-10UU, PFA Seats Seals RKN-10BP) 3” 6300 (PTFE Seats RKN-82TT, Filled PTFE Seats RKN-82MT, PFA Seats RKN-82BT, UHMW Seats RKN-82UU, PFA Seats Seals RKN-82BP) 4” 6300 (PTFE Seats RKN-12TT, Filled PTFE Seats RKN-12MT, PFA Seats RKN-12BT, UHMW Seats RKN-12UU, PFA Seats Seals RKN-12BP)
AAR certificate	E979042A
AAR approval drawing	5082-E

AFFU

Product name	AFFU
Product identification description / features	2" AFFU tank car top loading and unloading valve
Technical information	N.A
Maintenance instructions	IMO-086
Repair kits	RKA-6
AAR certificate	N.A
AAR approval drawing

AZFRA

Product name	AZFRA
Product identification description / features	Series AZFRA standard port angle ball valves 2 inch
Technical information	N.A
Maintenance instructions	IMO-080
Repair kits	RKR-26
AAR certificate	N.A
AAR approval drawing

AZFRR

Product name	AZFRR
Product identification description / features	Series AZFRR standard port ball valve 1-3 inch
Technical information	N.A
Maintenance instructions	IMO-084, IMO-081
Repair kits	RKR-26, RKA-47
AAR certificate	E899054
AAR approval drawing	3098-D

DZFRA

Product name	DZFRA
Product identification description / features	2" X 3" DZFRA tank car top loading and unloading valve
Technical information	N.A
Maintenance instructions	IMO-082
Repair kits	RKR-28
AAR certificate	N.A
AAR approval drawing

Bottom valves

Active production products

5REB3

Product name	5REB3
Product identification description / features	Series 5REB3 standard port Ball valves - low profile 4 inch
Technical information	Bulletin R106-1
Maintenance instructions	IMO-R4
Repair kits	RKN-80
AAR certificate	E172114
AAR approval drawing	4875-A

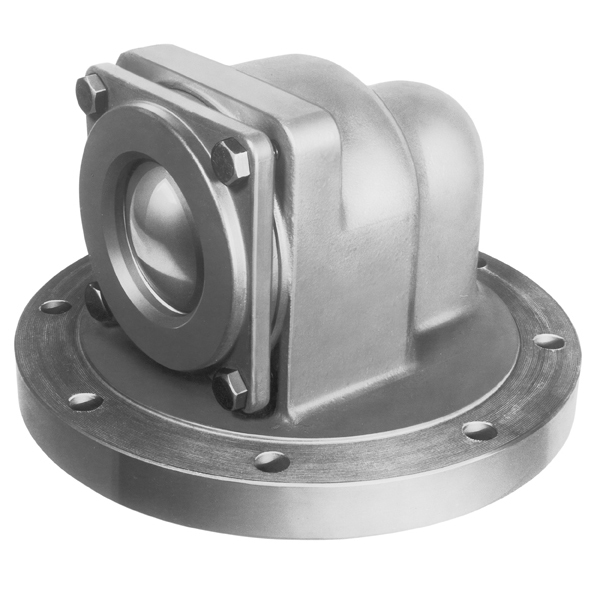

6RIB3

Product name	6RIB3
Product identification description / features	4” Internal bottom unloading full-port ball valve
Technical information	Bulletin R107-1
Maintenance instructions	IMO-R3
Repair kits	RKR-33
AAR certificate	E172130
AAR approval drawing	4406-M

9RET, 9REL

Product name	9RET, 9REL
Product identification description / features	4” Full-port bottom outlet valve
Technical information	Bulletin R105-RR
Maintenance instructions	IMO-R20
Repair kits	RKR-53
AAR certificate	E172109
AAR approval drawing	5476-M , 5475-M

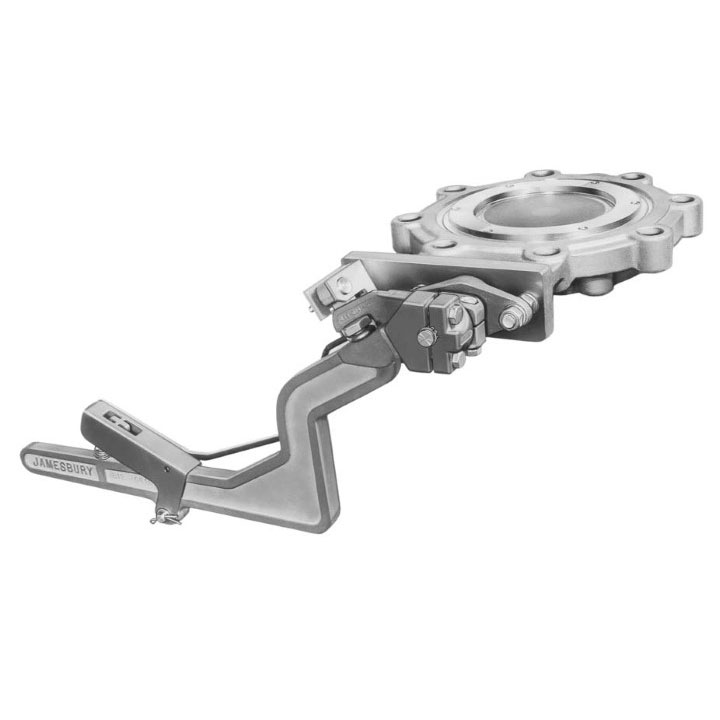

WSRR, WSRF

Product name	WSRR, WSRF
Product identification description / features	6” Butterfly valve. WSRR is standard valve, WSRF is Fire-Tite™
Technical information	Bulletin R108-1
Maintenance instructions	IMO-R11
Repair kits	WSRR: RKR-32 WSRF: RKR-35
AAR certificate	E182107
AAR approval drawing	5496-A

WSRR, WSRF Mod 6

Product name	WSRR, WSRF Mod 6
Product identification description / features	6” Butterfly valve. WSRR is standard valve, WSRF is Fire-Tite® valve
Technical information	Bulletin R108-1
Maintenance instructions	IMO-R11
Repair kits	WSRR: RKR-32 WSRF: RKR-35
AAR certificate	E182107
AAR approval drawing	5496-A

Bottom valves

Obsolete and in-active product – spare parts only

5RET

Product name	5RET
Product identification description / features	4” Reduced-port bottom outlet valve
Technical information	Bulletin R105-5
Maintenance instructions	IMO-R14
Repair kits	RKR-3
AAR certificate	E139506
AAR approval drawing	5264-K

AZFRC, DZFRC

Product name	AZFRC, DZFRC
Product identification description / features	Series AZFRC standard port ball valves 4 inch Series DZFRC standard port ball valves 6 inch
Technical information	N.A
Maintenance instructions	IMO-85, IMO-89A
Repair kits	RKR-3 (AZFRC), RKR-5 (DZFRC
AAR certificate	E979037A
AAR approval drawing	3475-K

AZFRL

Product name	AZFRL
Product identification description / features	Series AZFRL standard port ball valves - low profile 4 inch
Technical information	Bulletin R105-3
Maintenance instructions	IMO-R18, IMO-R5
Repair kits	RKR-3
AAR certificate	N.A
AAR approval drawing

SUZRC

Product name	SUZRC
Product identification description / features	Series SUZRC standard port ball valves 4 inch
Technical information	N.A
Maintenance instructions	IMO-R89 IMO-89A
Repair kits	RKR-39
AAR certificate	E979037A
AAR approval drawing	3475-K

SUZRL Mod A

Product name	SUZRL Mod A
Product identification description / features	Series SUZRL standard port ball valves - low profile 4 inch
Technical information	Bulletin R105-4
Maintenance instructions	IMO-R6
Repair kits	RKR-39
AAR certificate	N.A
AAR approval drawing

SUZRL Mod B

Product name	SUZRL Mod B
Product identification description / features	Series SUZRL standard port ball valves - low profile 4 inch
Technical information	Bulletin R105-4
Maintenance instructions	IMO-R19
Repair kits	RKR-39
AAR certificate	N.A
AAR approval drawing

WSRR, WSRF Mod 5

Product name	WSRR, WSRF Mod 5
Product identification description / features	6” butterfly valve. WSRR is standard valve, WSRF is Fire-Tite™ valve
Technical information	Bulletin R108-1
Maintenance instructions	IMO-R11
Repair kits	WSRR: RKR-32 WSRF: RKR-35
AAR certificate	E182107
AAR approval drawing	5496-A

DLAUX

Product name	DLAUX
Product identification description / features	2" DLAUX TFE lined unloading valve
Technical information	N.A
Maintenance instructions	IMO-83
Repair kits	RKR-38
AAR certificate	N.A
AAR approval drawing
